SunPlus Technologies
▶ SQUAD SERIES───◇───◇───

DC Fast
Charging Solutions

Powering a Greener, Faster Tomorrow

High-performance DC fast chargers designed to deliver ultra-fast, reliable and efficient charging for every electric vehicle. Ranging from 15kW to 360kW hyper-charging systems.

Explore ChargersDownload Brochure

Ultra Fast

Safe & Reliable

Smart Sync

All-Purpose

Future Ready

Dynamic Calculator

DC Hyper-Charging Simulator

Select your vehicle model and match it with a Squad Series DC charger output to estimate real-world charging speeds, added range, and environmental savings.

Start State of Charge (SoC)10%
Target State of Charge (SoC)80%
BMS Protection Active: Charging speed automatically tapers above 80% to protect the battery cell chemistry and avoid thermal stress. We recommend charging to 80% SoC for daily operations.
Estimated charging time
37 mins
To charge from 10% to 80%
Added Range+176 kmAt typical efficiency
CO2 Saved~25.5 kgVs fossil-fuel cars
Battery Status Simulation80% Target
Start: 10%Effective Power Limit: 50 kWEnd: 80%
SQUAD SERIES CATALOGUE

DC Fast Charger For EV

Deploy rapid and hyper-charging infrastructure with the Servotech Squad Series. Ranging from 15kW compact units to 350kW liquid-cooled highway systems, these chargers are engineered for bus depots, commercial logistics fleets, and highway corridors.

3-Phase Input
20 kW Output

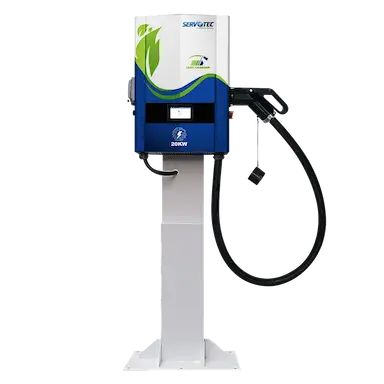

15 kW / 20 kW Compact DC Fast Charger
Speed Index6% Max DC
15 kW / 20 kW Smart DC

15 kW / 20 kW Compact DC Fast Charger

A compact, space-saving DC fast charger ideal for private garages, commercial offices, car dealerships, and fleet depots. Designed for quick turnaround charging.

Input Voltage415 V AC 3-Phase + Neutral
Output Voltage Range50 V - 500 V DC
Max Output Current50 A
Number of Connectors1x CCS Type 2 Gun
  • Ideal fast charging for entry-level logistics fleets
  • Single CCS 2 connector gun with ergonomic hanger hook
  • Compact space-saving layout (wall or pedestal options)
  • Extremely low installation and grid connection overhead
Download Spec Catalog
3-Phase Input
30 kW Output

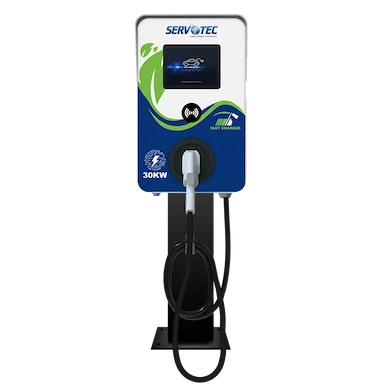

CCS-2 Charging Station - Single Gun 30kW
Speed Index9% Max DC
30 kW Smart DC

CCS-2 Charging Station - Single Gun 30kW

A versatile smart DC charging station equipped with a sunlight-readable touchscreen and silent cooling. Ideal for highway hotels, fine dining, and retail parking spaces.

Input Voltage415 V AC 3-Phase + Neutral
Output Voltage Range150 V - 1000 V DC
Max Output Current100 A
Number of Connectors1x CCS Type 2 Gun
  • 7-inch sunlight-readable capacitive visual touchscreen
  • High-efficiency cooling modules keep sound levels low
  • Real-time diagnostic log reporting and OCPP triggers
  • Emergency stop button and secondary electrical isolation circuit
Download Spec Catalog
3-Phase Input
60 kW Output

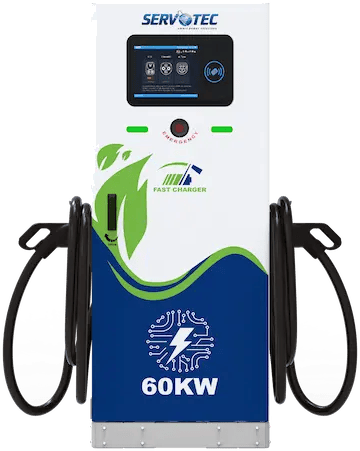

CCS-2 Charging Station - Dual Gun 60kW
Speed Index17% Max DC
60 kW Smart DC

CCS-2 Charging Station - Dual Gun 60kW

A powerful dual-gun charging station with smart dynamic power sharing. Perfect for highway fuel pumps, public parking plazas, and corporate offices charging multiple EVs.

Input Voltage415 V AC 3-Phase + Neutral
Output Voltage Range150 V - 1000 V DC
Max Output Current150 A (Combined)
Number of Connectors2x CCS Type 2 Guns
  • Dual CCS 2 connectors support simultaneous vehicle charging
  • Dynamic power splitting splits output (30kW+30kW or 60kW single)
  • Robust industrial-grade enclosure built for harsh dust climates
  • Integrated leakage current and phase loss detection safety
Download Spec Catalog
3-Phase Input
120 kW Output

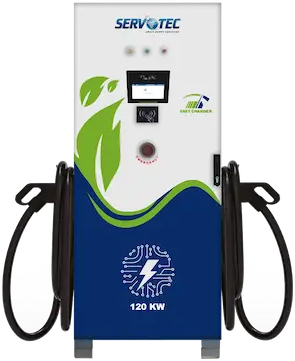

CCS-2 Charging Station - Dual Gun 120kW
Speed Index34% Max DC
120 kW Smart DC

CCS-2 Charging Station - Dual Gun 120kW

An ultra-fast corridor charging solution adding up to 100km of range in under 15 minutes. Features wide voltage capability to match all modern EV commercial and passenger chassis.

Input Voltage415 V AC 3-Phase + Neutral
Output Voltage Range200 V - 1000 V DC
Max Output Current250 A (Combined)
Number of Connectors2x CCS Type 2 Guns
  • Ultra-fast charging: Adds 100km of range in under 15 minutes
  • Dual guns with smart dynamic load-balancing power splits
  • Wide output voltage range matching all modern EV chassis
  • Overcurrent, surge, ground fault, and overtemperature sensors
Download Spec Catalog
3-Phase Input
240 kW Output

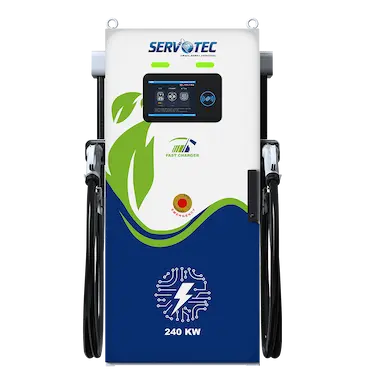

CCS-2 Charging Station - Dual Gun 180kW - 240kW
Speed Index69% Max DC
180 kW - 240 kW Smart DC

CCS-2 Charging Station - Dual Gun 180kW - 240kW

High-speed supercharging designed for electric trucks, interstate buses, and passenger EVs. Its high-density module stack delivers excellent thermal efficiency and reliability.

Input Voltage415 V AC 3-Phase + Neutral
Output Voltage Range200 V - 1000 V DC
Max Output Current350 A (Combined)
Number of Connectors2x CCS Type 2 Guns
  • High-output supercharging for trucks, buses, and high-performance passenger EVs
  • High power density module stack minimizes layout size footprint
  • Dynamic energy balancing splits load as 120kW+120kW or 180kW+60kW
  • Robust double-layer anti-corrosion cabinet built for highway corridor dust
Download Spec Catalog
3-Phase Input
350 kW Output
CCS-2 Charging Station - Dual Gun 350kW
Speed Index100% Max DC
350 kW Smart DC

CCS-2 Charging Station - Dual Gun 350kW

Our flagship hyper-charging station designed for rapid bus swaps and heavy logistics hubs. Outfitted with liquid-cooled cables to prevent thermal throttling at maximum current.

Input Voltage415 V AC 3-Phase + Neutral
Output Voltage Range200 V - 1000 V DC
Max Output Current500 A (Liquid Cooled Option)
Number of Connectors2x to 4x CCS Type 2 / MCS Guns
  • Ultra-rapid hyper-charging infrastructure flagship model
  • Liquid-cooled cable option prevents thermal throttling at high amps
  • Dynamic multi-cabinet energy sharing allocation logic
  • Full OCPP communication cards for fleet management software
Download Spec Catalog
High-Power Siting Environments

Compatible Siting Locations

Commercial

Malls

Offices

Stations

Grid & Site Preparation

DC Feasibility & Siting Checklist

Review key electrical infrastructure guidelines necessary before deploying high-power DC fast chargers.

01

LT vs HT Substation Feasibility

Low-capacity (15kW–30kW) DC stations connect directly to standard Low Tension (415V LT) grids. High-power systems (60kW, 120kW, up to 360kW) mandate dedicated High Tension (11kV HT) substations with a private transformer bay.

02

Active Thermal Dissipation

Squad fast chargers generate heat during heavy current draws. The systems incorporate advanced forced-air cooling. Our 240kW–350kW hyper-chargers support liquid-cooled cable terminals to prevent high-amp thermal throttling.

03

Physical Clearances & Safety

Fast charging bays require safe clearances. Ensure a 1-meter service spacing layout behind the cabinet for air-ventilation flow. Equip bays with electrical isolators, mechanical impact guards, and accessible emergency-stop buttons.

DC LEARNING CENTER

Frequently Asked Questions

Find answers to key technical and operational questions regarding DC Fast Chargers.
