SunPlus Technologies
Premium AC Charger Portfolio

Spark Series
Smart AC Charging

Empowering residential and commercial hubs across Gujarat with fast, reliable, OCPP-integrated charging systems.

Find Your Match

Home Charging

Office & Commercial

Fleet Charging

Safe. Smart.

EV Compatibility Finder

Select Your Vehicle

Find the recommended charger and estimated charge times.

Choose an EV model to display optimal configuration
Grid Capacity Configurator

Available Site Power

Drag the slider to test which chargers your facility can support.

Available Load Limit50 kW
3 kW (Residential)25 kW (Commercial)50 kW (Depot)
Compatible Chargers6 of 6 Models
3.3 kW7.4 kW10 kW11 kW14 kW22 kW
Single Phase
3.3 kW Output

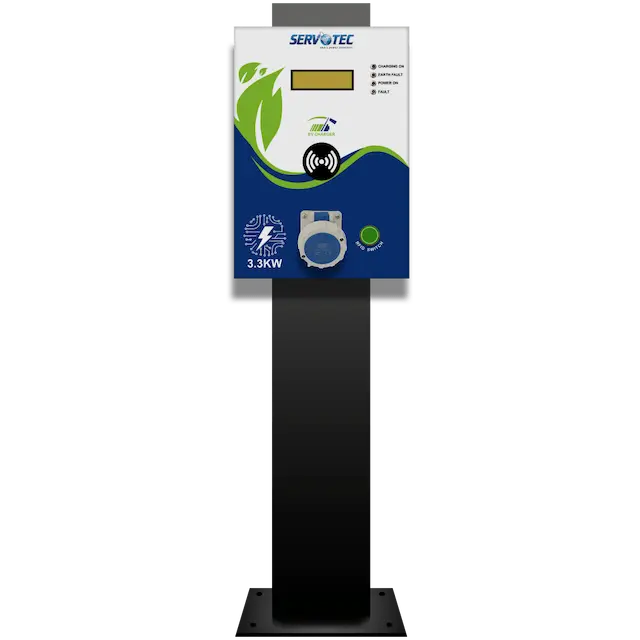

Spark 3.3kW Home AC Charger
Speed Index15% Max AC
3.3 kW Smart AC

Spark 3.3kW Home AC Charger

A compact, lightweight, and user-friendly AC charger designed for home garages, private parking, and residential complexes. It offers safe, overnight charging for standard electric vehicles.

Input Voltage230 V AC Single Phase
Output Voltage230 V AC Single Phase
ConnectorIEC 60309 / 5A/15A Socket
PhaseSingle Phase
  • Compatible with all Indian electric vehicles
  • RFID card & mobile app QR code authentication
  • LED indicator strip for live charging status
  • Over/under voltage, surge, and leakage protections
Download Spec Catalog
Single Phase
7.4 kW Output

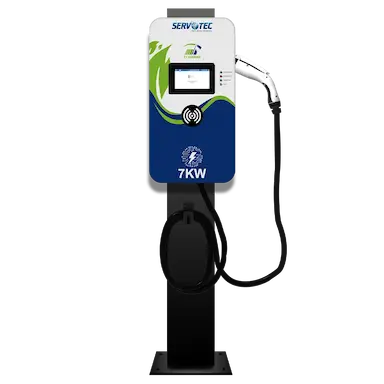

Spark 7.4kW Wallbox Charger
Speed Index34% Max AC
7.4 kW Smart AC

Spark 7.4kW Wallbox Charger

The classic wallbox smart charger for corporate offices, workplaces, and modern residential apartments. It provides fast AC charging with advanced smart scheduling options.

Input Voltage230 V AC Single Phase
Output Voltage230 V AC Single Phase
ConnectorType 2 Connector Cable (5m)
PhaseSingle Phase
  • Dynamic load balancing with building grid
  • Emergency stop push-button for hardware cutoff
  • Type A + 6mA DC residual current protection
  • Supports scheduled charging via mobile app
Download Spec Catalog
3-Phase Input
10 kW Output

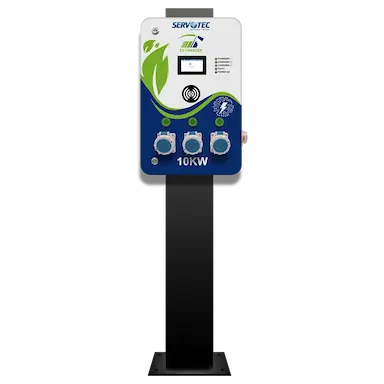

Spark 10kW Bharat AC-001
Speed Index45% Max AC
10 kW Smart AC

Spark 10kW Bharat AC-001

Designed specifically to meet the Indian Bharat EV standards. Featuring three simultaneous charging sockets, it is ideal for public parking lots, commercial offices, and two/three-wheeler fleets.

Input Voltage415 V AC Three Phase Input
Output Voltage230 V AC Single Phase per socket
Connector3x IEC 60309 Sockets (3.3kW each)
PhaseThree Phase Input, Single Phase Output
  • Compliant with Bharat EV AC001 standards
  • Charges up to three 2W/3W/4W vehicles simultaneously
  • Robust tamper-proof metal casing
  • Integrated payment gateways & OCPP backend
Download Spec Catalog
3-Phase Input
11 kW Output
Spark 11kW Three-Phase AC Charger
Speed Index50% Max AC
11 kW Smart AC

Spark 11kW Three-Phase AC Charger

High-speed three-phase AC charging station optimized for high-end electric vehicles. Suitable for premium corporate fleets, shopping complexes, and retail parking zones.

Input Voltage415 V AC Three Phase
Output Voltage415 V AC Three Phase
ConnectorType 2 Connector Socket
PhaseThree Phase
  • High-speed three-phase charging technology
  • Over/under voltage and lightning surge protection
  • OCPP 1.6J compliant communication backend
  • IP54 / IK10 impact-proof design for outdoor installations
Download Spec Catalog
3-Phase Input
14 kW Output

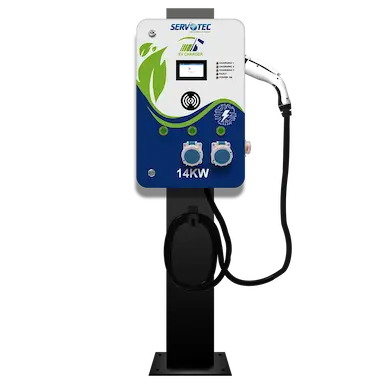

Spark 14kW Hybrid Multi-Gun
Speed Index64% Max AC
14 kW Smart AC

Spark 14kW Hybrid Multi-Gun

A versatile dual-gun charging station combining a Type 2 high-speed socket with multiple IEC sockets. Perfect for multi-vehicle public depots charging two/three-wheelers and four-wheelers simultaneously.

Input Voltage415 V AC Three Phase Input
Output Voltage415V Three Phase & 230V Single Phase
ConnectorType 2 Socket + 3x IEC Sockets
PhaseThree Phase
  • Dual charging technology: Type 2 + Bharat AC001
  • Smart dynamic power splitting logic based on vehicle draw
  • Highly ruggedized design built for public Indian grid spikes
  • Supports remote diagnostics and software upgrades over the air
Download Spec Catalog
3-Phase Input
22 kW Output
Spark 22kW High-Output Charger
Speed Index100% Max AC
22 kW Smart AC

Spark 22kW High-Output Charger

The ultimate high-power AC charging station, delivering maximum speed AC charging capabilities for vehicles with 22kW onboard chargers. Fits premium hotels, highway plazas, and depot operations.

Input Voltage415 V AC Three Phase
Output Voltage415 V AC Three Phase
ConnectorType 2 Dual Socket / Socket Options
PhaseThree Phase
  • Fastest AC charging rate available in the industry
  • Onboard cellular 4G, Wi-Fi, and Ethernet connectivity
  • Premium industrial-grade casing with IK10 impact resistance
  • Wall-mount or pedestal-mount installation flexibility
Download Spec Catalog
Versatile Installation Environments

Compatible Siting Locations

Home / Apartment

Private garages & residential zones

Hotel / Resorts

Premium guest charging amenities

Corporate Offices

Workplace fleet & employee charging

Open Parking

Municipal & commercial public zones

Shops / Stores

Customer convenience & retail hubs

Cafes / Restaurants

Dine-and-charge hospitality spots

AC Siting Requirements

Electrical Sizing

Single phase models (3.3kW, 7.4kW) require standard 230V grid lines. High-power 11kW and 22kW models require 3-Phase 415V input. Smart meters and dynamic load splitters can balance multiple stations on restricted connections.

Connectivity & Access

Internet connectivity via Wi-Fi or cellular GSM is recommended to activate the OCPP management cloud. RFID card auth ensures restricted parking environments can track user billing cycles and restrict public use.
